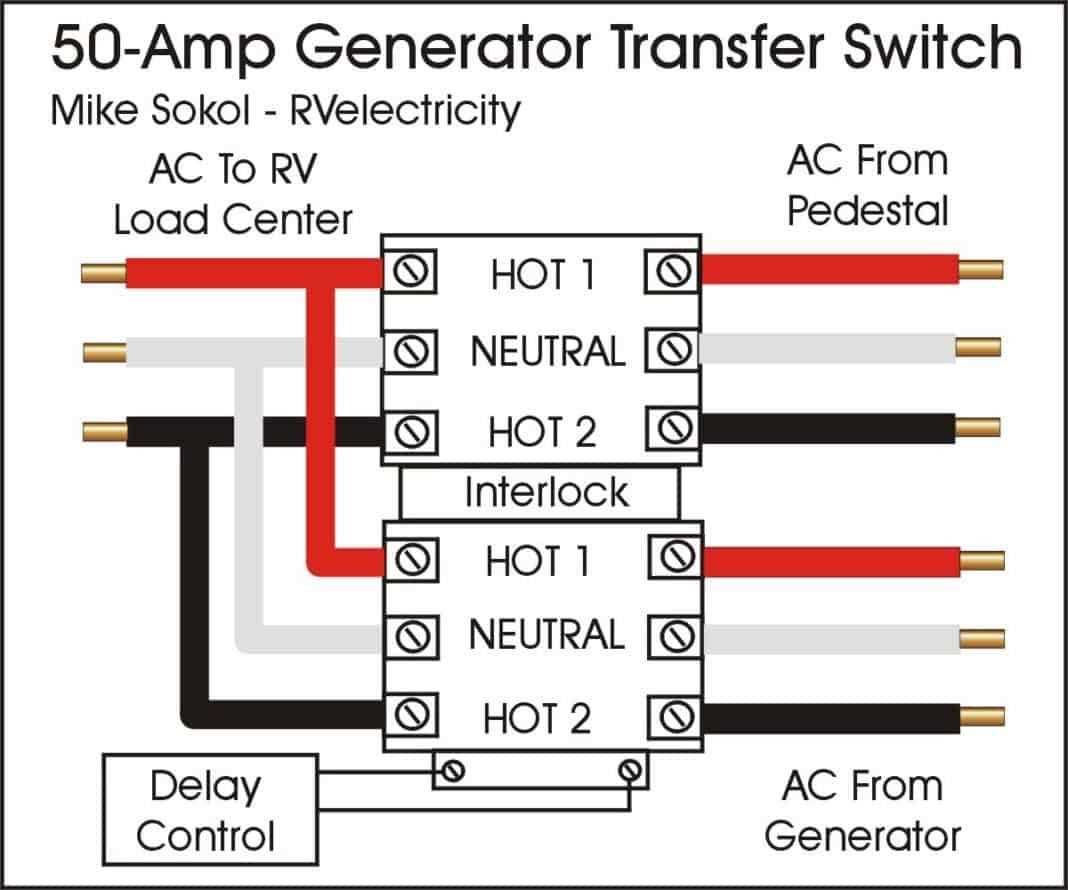

Step-by-Step Guide to Creating a Transfer Switch Wiring Diagram
Install a 30-amp double-pole breaker in your main service panel before connecting any cutover device. Label it clearly to prevent accidental disconnection during maintenance. Use 10-gauge copper wire for circuits rated up to 30 amps–any thinner gauge risks overheating under sustained load. For 50-amp systems, upgrade to 6-gauge wire with a matching breaker to handle the increased current without voltage drop.
Route all conductors through schedule 40 PVC conduit with a minimum diameter of 1 inch. Seal entry points with waterproof gland fittings to prevent moisture ingress, especially if the installation is outdoors. Avoid flexible conduit near sharp edges or high-traffic areas–rigid PVC withstands impact better and resists crushing from soil pressure or equipment.
Position the cutover mechanism within 3 feet of both the main panel and the backup generator. Exceeding this distance increases voltage loss and requires larger wire gauges to compensate. Mount the unit on a non-flammable surface, such as concrete or metal, and maintain 18 inches of clearance on all sides for proper ventilation and compliance with NEC Article 445.
Connect the neutral conductor directly to the grounding busbar in the cutover unit–never splice it through the generator. Bond the ground bar to the equipment chassis using a #6 AWG bare copper wire, ensuring a low-resistance path for fault currents. Test continuity with a digital multimeter set to ohms–readings above 0.5 ohms indicate a faulty connection that must be corrected.
Use UL-listed type NM cable clamps at every entry and exit point of the panel. Secure wires with nylon ties spaced no more than 6 inches apart to prevent sagging, which can loosen connections over time. Strip insulation precisely–3/4 inch for solid wire, 1 inch for stranded–to avoid exposed copper while ensuring full engagement with terminal screws.
Label every circuit inside the cutover unit with laminated tags, specifying the connected load and breaker rating. Include a shutdown sequence diagram on the cover to guide operators during manual transfers. Verify all connections with a torque screwdriver set to 20 inch-pounds–loose terminals are a leading cause of arcing and equipment failure.
Electrical Connection Scheme for Automatic Power Source Alternator
Begin by isolating the main breaker panel from the utility feed before installing any secondary circuit paths. Use a 6 AWG copper conductor for the neutral link between the generator and alternator unit, ensuring it terminates at the designated grounding busbar–never splice or share this path with other conductors. Verify local codes require a minimum 10 AWG grounding electrode conductor from the alternator frame to the building’s grounding system; failure to comply risks hazardous floating neutrals during switchover.
Connect the generator’s output lugs to a dedicated double-pole, 240V breaker in the sub-panel using 4 AWG aluminum wire for distances exceeding 30 feet–calculate voltage drop: 3% maximum at full load. Label every terminal with embossed tags (not handwritten) to prevent misidentification during maintenance. The alternator’s control board must receive a separate 120V feed from a fused, unswitched circuit to maintain sensing functions during outages; use a 15A breaker dedicated solely to this purpose.
Key Conductor Routing Precautions
Route all phase and neutral cables through non-flexible conduit (Schedule 40 PVC or EMT) with sealed entries at both ends to exclude moisture and rodents. Maintain a 2-inch separation between these conduits and any low-voltage wiring (thermostats, doorbells) to prevent inductive interference. In locations prone to seismic activity, secure conduits with nylon straps every 3 feet and install flexible couplings at structural joints.
For manual alternators without automatic sensing, hardwire a Greenlee GT-12 non-contact voltage tester into the control circuit–it triggers a 12V relay to engage the generator only when utility power falls below 108V. Avoid relying on transfer mechanisms with built-in delay timers longer than 30 seconds; prolonged dead periods can damage refrigeration compressors and medical equipment. Test the setup quarterly by simulating a blackout: verify the generator starts within 10 seconds and the alternator switches without arcing at the contacts.
Use a Fluke 17B multimeter to confirm each phase leg reads within 5% of the others before finalizing connections–imbalance indicates faulty generator windings or alternator contacts. Install a shunt trip breaker rated for 10,000A interrupting capacity on the utility side to protect against backfeed from the generator. Label this breaker with red reflective tape and post a warning sign: “DANGER: Live utility disconnect when generator operates.”
Grounding and Bonding Specifics
Drive two 8-foot copper-clad grounding rods spaced at least 6 feet apart, connected by a continuous 2 AWG bare copper conductor buried at least 18 inches deep. Avoid aluminum grounding conductors in corrosive soil–use only tinned or stainless steel clamps. The alternator’s neutral must be bonded to its frame at a single point with a brass lug; never bond it at the main panel to prevent neutral current flowing through the grounding system during normal operation.
For mobile generators, add a 100A bolt-on isolator between the alternator and the generator’s frame–this prevents stray current from energizing the trailer chassis. In flood-prone regions, elevate all electrical connections at least 2 feet above the base flood elevation and use waterproof heat-shrink tubing over all lugs. Replace all connections exposed to salt spray or industrial pollutants annually; corroded terminals increase resistance, causing overheating and premature failure.
Document every connection in a master spreadsheet: wire gauge, color coding, conduit type, breaker ratings, and torque specifications for each lug (e.g., 25 lb-in for 4 AWG aluminum). Include photographs of the completed setup with close-ups of terminal markings. Store digital copies offline and maintain a physical printout inside a sealed plastic sleeve at the alternator’s location–this expedites troubleshooting and ensures compliance during inspections.
Selecting the Optimal Automatic Changeover Mechanism for Your Setup
Install a manual bypass unit if your system requires zero dependency on power for activation–these standalone modules handle 10–1000 amps with mechanical interlocks, eliminating failure points tied to sensors or controllers. For environments prone to voltage irregularities, opt for an open-transition model: it severs the circuit before reconnecting (break-before-make), preventing backfeed that could damage sensitive electronics in medical or data center applications. Closed-transition variants suit facilities where even a 20ms interruption disrupts critical operations–these maintain continuous current flow during cutover, but require additional protective relays to synchronize phases within a 5% frequency tolerance.
Key Selection Criteria by Application
| Load Type | Recommended Type | Current Capacity Range | Critical Considerations |
|---|---|---|---|
| Residential (backup power) | Open-transition with fail-safe interlock | 20–200 amps | UL 1008 compliance; surge protection for 5kVA+ loads |
| Commercial (HVAC, lighting) | Closed-transition with PLC control | 200–800 amps | Phase synchronization ±3°; transient suppression for inductive loads |
| Industrial (motors, process equipment) | Soft-load transfer with arc suppression | 400–2000 amps | NEMA MG-1 torque ratios; harmonic filtering for VFDs |
| Data Centers (UPS integration) | Static bypass with dual-redundant controllers | 100–500 amps/phase | Sub-cycle ( |
Prioritize units with built-in load shedding for generators under 50kW–this extends runtime by disconnecting non-essential circuits (e.g., water heaters, pool pumps) during prolonged outages. For solar or wind hybrid systems, integrate a pass-through mechanism rated for 600VDC to handle bidirectional power flow without thermal overload. Always match the interrupting rating (IR) to your main breaker: a 65kA IR suffices for most panels, but industrial setups may demand 100kA for short-circuit protection.
Step-by-Step Connection Guide for Manual Power Changeover Devices
Start by securing the main utility feed to the input terminals of the changeover unit, ensuring the breaker matches the panel’s amperage rating–typically 30A for residential setups or 50A+ for heavy-duty systems. Use 6 AWG copper cables for 50A circuits or 10 AWG for 30A, stripped precisely to 0.75 inches to avoid loose connections while preventing exposed strands from creating shorts. Label each conductor: black for line, red for alternate source, white for neutral, and green or bare for earth. Tighten terminal screws to 12 inch-pounds for copper lugs–confirm with a torque screwdriver to prevent overheating.
Connect the generator’s output to the secondary input, verifying phase alignment with a multimeter: L1 (main) to L1 (generator), L2 to L2, and neutral to neutral. Test continuity between earth and generator frame–readings should show 0.1 ohms or less. For subpanels, route individual branch circuits through the changeover’s output terminals, grouping critical loads like refrigeration, medical devices, or sump pumps. Seal all entry points with waterproof gland fittings to meet NEC 312.5 and IP67 standards.
Key Safety Precautions During Automatic Power Source Integration
Shut off all energy inputs at the main breaker before handling any connections. Arc flashes from even 120V circuits can cause third-degree burns at six inches, while 240V faults may produce temperatures exceeding 35,000°F. Verify isolation with a non-contact voltage tester on every conductor–grounded neutrals often retain lethal charge after disconnect. Label cables with permanent markers to prevent misidentification during re-energization.
- Ground the enclosure using a minimum #6 AWG copper conductor bonded to the building’s grounding electrode system. Improper grounding causes 32% of electrical fatalities during standby equipment activation.
- Seal knockouts with listed electrical fittings to prevent rodents or moisture ingress. A single 0.5mm gap permits condensation that can destroy printed circuit boards in under 48 hours.
- Mount the unit at least 18 inches above potential flood levels. NEMA 3R enclosures corrode internally within two years if exposed to standing water, even from minor leaks.
Test overcurrent protection devices with a calibrated load bank before final energization. Standard 50A breakers frequently fail under sustained inrush currents common during motor startups–replace any showing thermal deformation. Maintain access clearance of 30 inches per NEC 110.26 to prevent trapped heat from degrading insulation resistance below 1 megohm, a threshold for hidden faults detectable only with insulation testers.
