Standard Electrical Circuit Symbols and Their Meaning in Diagrams

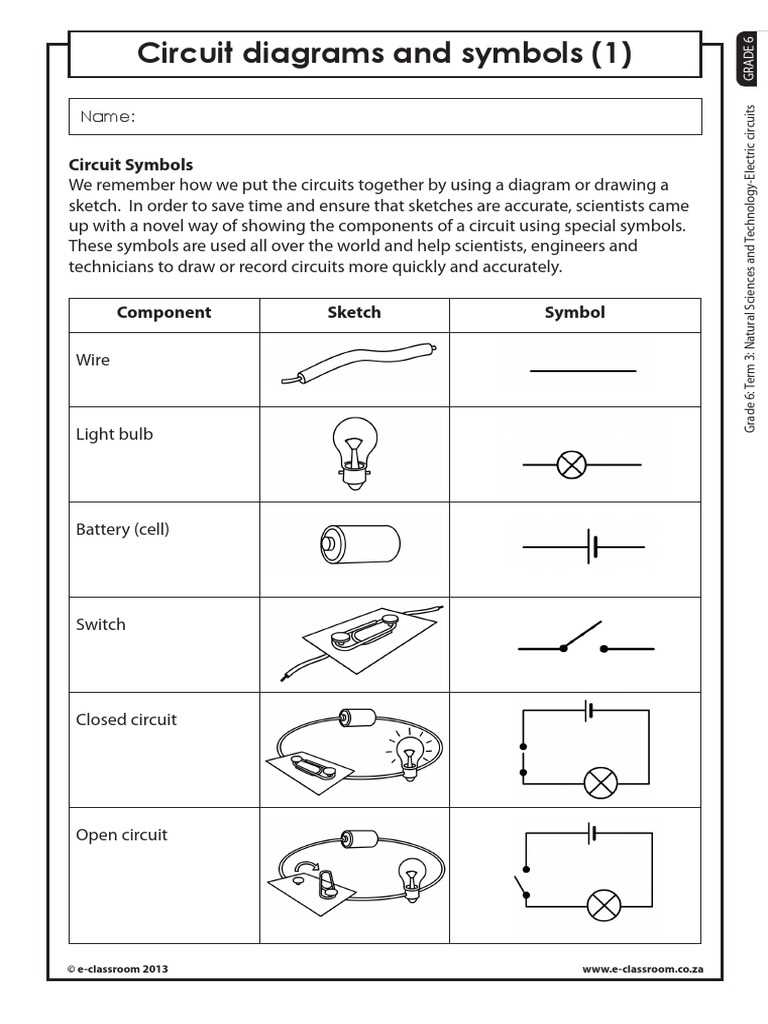

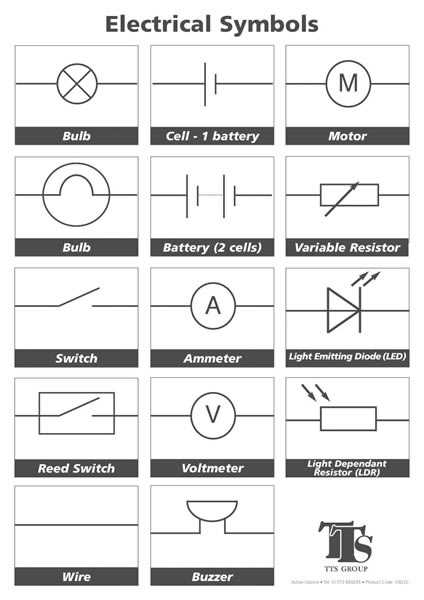

Master schematic reading by identifying core visual markers. A resistor is denoted by a zigzag line (IEC: rectangle with value). Capacitors use parallel lines–polarized variants add a curved anode. Inductors appear as loops or coils, simplified to a single winding in basic schematics. Transistors split into bipolar (BJT) and field-effect (FET) types: BJTs show a vertical line with emitter, base, and collector arrows; FETs display a channel with gate, source, and drain connections.
Power sources differ by type. Batteries stack multiple cells, labeled with voltage. DC supplies show a single line (positive) with a ground reference. AC alternators depict a sine wave or circle with an inner wave symbol. Switches bifurcate: momentary types use brackets, latching switches show mechanical breaks. Diodes form a triangle against a line–LEDs add parallel arrows.
Integrated components follow standardized patterns. Logic gates (AND, OR, NOT) use distinctive curved or angular shapes. Operational amplifiers show an inverting and non-inverting input with a triangular output lead. Microcontrollers appear as rectangles with labeled pins–pin counts and functions dictate labeling conventions. Wires intersect at nodes; junctions mark connections with dots or cross-without-dot for isolation.
Thermistors and photoresistors replace standard resistor symbols with temperature or light modifiers (arrows or Greek letters). Transformers loop two inductors, sometimes adding core indications (dotted lines for magnetic coupling). Fuses show a thin rectangle along a conductor line. Grounds split into chassis (horizontal lines), signal (downward triangle), and earth (three-tiered symbol) variants.
Achieve accuracy by cross-referencing manufacturer datasheets with the schematic. Confirm pin numbering for ICs–some reverse numerical order. Distinguish between US (ANSI) and international (IEC) standards: IEC uses boxes for resistors and capacitors, while ANSI retains legacy symbols. Label all component designators (R1, C5, Q3) to track references during testing or troubleshooting. Annotate unfamiliar symbols with brief tooltip descriptions for rapid recall.
Graphical Representations in Schematics: A Practical Guide
Always verify the IEC 60617 or ANSI Y32 standards before selecting notations for your layout–regional conventions differ. European schematics favor rectangles for resistors (R), while North American standards use zigzag lines. This distinction affects readability for global teams, so annotate ambiguities with text labels.
For transistors, depict BJTs as a vertical line with three angled connectors (collector, base, emitter) and FETs with a perpendicular gate. Ensure the gate arrow direction matches the channel type (N or P); reversed arrows cause misinterpretations during prototyping. Add pin numbers if the component lacks standardized packaging (e.g., TO-92 vs. SOT-23).
Switches require precise labeling of throw positions (SPST, DPDT). Use a gap for “open” states and a solid line for “closed”–omitting this detail risks incorrect wiring during assembly. Indicators like LEDs should include a forward-voltage annotation (Vf ≈ 2V), while motors need current ratings (Imax) to prevent overloads.
Ground notations vary: chassis ground (triangle with a horizontal bar) differs from signal ground (inverted triangle). Mixing these in mixed-signal designs leads to noise coupling. For power sources, batteries use alternating long/short lines; highlight polarity with “+” and “-” signs to avoid reverse connections.
Integrated circuits (ICs) mandate pinout cross-references. Draw a rectangle with numbered connectors, then list functions (e.g., “Pin 1: VCC“) in a legend. For microcontrollers, specify reset pin requirements (pull-up resistor needed) and clock speeds (8 MHz crystal)–missing these causes erratic behavior.
Coils (inductors) and transformers need turns-ratio data (1:10) and core material (ferrite, air). Capacitors require tolerance values (±10%) and dielectric type (ceramic, electrolytic); electrolytic ones must show polarity. Fuses should include trip-current thresholds (500 mA) and symbolize with a rectangle if non-resettable.
Standard Representations of Fundamental Passive Elements
Always reference IEC 60617 or ANSI Y32.2 standards when drafting schematics–these codify graphical conventions universally adopted across industries, ensuring immediate recognition regardless of regional practices. Discrepancies between standards typically involve minor orientation or stylistic details, but core shapes remain consistent. For precise identification during design reviews, attach a reference legend directly to the schematic sheet.
Core Components and Their Schematic Equivalents
| Element | Graphical Form | Key Attributes | Common Variations |
|---|---|---|---|
| Resistor | Zigzag line (IEC) / rectangle (ANSI) | Fixed resistance value marked outside shape; arrow through symbol indicates variable type | Potentiometer (three-terminal), thermistor (curved arrow), photoresistor (two arrows inwards) |
| Capacitor | Two parallel lines (non-polarized) / curved line (polarized) | Values in microfarads/nanofarads; polarization marked with “+” sign | Trimmer (adjustable), supercapacitor (double curved lines) |
| Inductor | Series of loops (air-core) / filled rectangle with gap (ferrite-core) | Henrys specified beside symbol; dotted core indicates magnetic material | Tapped (additional connection point), variable (arrow across loops) |
For inductors, verify core material–air-core loops lack filled shapes, while magnetic cores (ferrite, iron) use a gap-less rectangle. Misinterpretation of core type leads to incorrect impedance calculations at high frequencies. Polarized capacitors must orient the curved line toward the lower potential node; reversed connection risks catastrophic failure in electrolytic types. Resistors drawn horizontally on schematics should align with signal flow direction for consistency, though vertical placement is permissible when space constraints dictate.
Common Active Components: Transistors, Diodes, and Integrated Circuits
Choose bipolar junction transistors (BJTs) for low-power switching when current gain (hFE) between 50–500 is critical–measure base current to avoid saturation in designs under 100 mA. For MOSFETs, prioritize RDS(on) values below 50 mΩ in high-frequency applications to minimize conduction losses, especially in power supplies above 20 kHz.
Select Schottky diodes for fast recovery (trr
Opt for operational amplifiers (op-amps) like LM358 in single-supply designs where input common-mode range must include ground–avoid rail-to-rail types unless noise below 1 mVpp is non-negotiable. For comparators, TL331 reduces propagation delay to 300 ns but requires hysteresis (10–50 mV) to reject noise in digital threshold detection.
In microcontroller ICs, ATmega328P balances cost and functionality with 32KB flash, 2KB SRAM, and 16 MHz clock–disable brown-out detection (BOD) to save 1.8 µA in battery-powered nodes. For precision analog, MAX6675 converts thermocouple readings with ±2°C accuracy but isolate SPI lines with 1 kΩ resistors to prevent EMI-induced errors in industrial environments.
Transistor Configurations: Trade-offs and Fixes
Common-emitter amplifiers boost gain but suffer from temperature-sensitive bias drift–use a voltage divider with 1% resistors and a 10°C temperature margin. Emitter followers (common-collector) drive low-impedance loads reliably; pair 2N3904 with a 1 kΩ base resistor and 47 µF emitter capacitor for audio coupling to speakers under 8 Ω.
MOSFET drivers like TC4427A handle 1.5A gate currents but require a series diode (1N4148) to block backflow during turn-off–omit this and risk shoot-through in half-bridge topologies. For logic-level MOSFETs, IRLZ44N switches 5V GPIO signals effectively, but add a 10 kΩ pull-down to prevent floating gates in high-noise settings.
Integrated Circuit Selection: Hidden Constraints
DACs like MCP4725 (12-bit) achieve 4096-step resolution but limit update rates to 40 kSPS–add a 1 µF decoupling capacitor directly at VDD to suppress glitches from rapid transitions. Linear regulators (e.g., LM1117) drop out at 1.2V; for 3.3V outputs, ensure input exceeds 4.5V under worst-case load currents (800 mA).
FPGAs such as XC3S50A offer reprogrammable logic but consume 50 mW/MHz–disable unused I/O blocks and clocks to cut static power by 30%. For signal conditioning, AD8232 amplifies ECG signals with 1–1000 gain but demands a shielded twisted-pair cable for leads longer than 20 cm to reject 50/60 Hz mains interference.
Switches, Relays, and Connectors: How to Represent Control Elements
Use a break contact (normally closed) for momentary switches in schematic layouts–depict it with a diagonal line intersecting the switch lever, ensuring the contact gap aligns precisely with the component’s mechanical action. For latching relays, distinguish coil excitation with a dashed rectangle enclosing the coil symbol, while marking input and output terminals via numbered pins: coil (A1-A2), NO (13-14), NC (11-12). Always orient connector representations horizontally for board-to-board links, using gender-specific symbols: a male pin as a filled circle, a female socket as an open ring, and shielded pairs with a dashed box enclosing both conductors.
Label each control element with function-specific identifiers: “S1” for manual switches, “K1” for relays, “X1” for connectors–append voltage/current ratings (e.g., “S1: 250VAC 10A”) beneath the symbol in 2mm Arial italics, avoiding crowded spacing. For rotary switches, indicate position count via radial lines–three lines for a 3-position switch–and mark the common terminal with a thicker line. Tooltips embedded in CAD tools should include part numbers (e.g., “TE Connectivity 1734601-4”) and footprint references (e.g., “SOIC-16”), ensuring cross-referencing during assembly.
