Complete 24V Trolling Motor Wiring Guide with Schematic and Connections

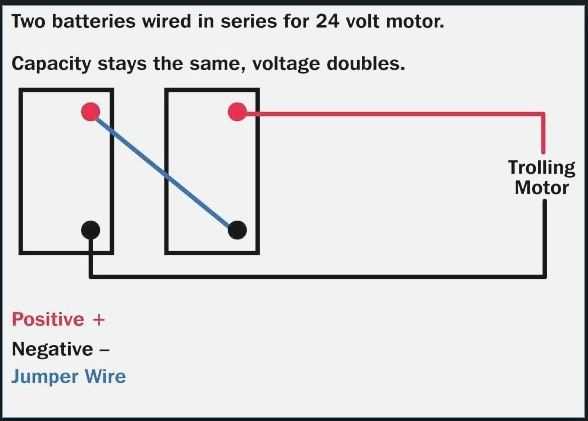

Begin by connecting the positive terminal of the first 12V battery directly to the negative terminal of the second battery. This series linkage doubles the voltage output while maintaining the same amp-hour capacity. Verify polarity before securing connections–reversed leads will damage control electronics.
Route the combined 24V output to the control box through 6-gauge marine-grade cable. Avoid sharp bends to prevent conductor fatigue. Install a 60A circuit breaker within 7 inches of the positive battery terminal; this serves as both safety cutoff and ignition fuse. Ground the negative return to the transom using a dedicated 1/0 AWG strap–do not daisy-chain grounds through existing hull hardware.
For throttle control integration, wire the potentiometer or PWM output in parallel with the main power feed. Use shielded twisted-pair cable (18 AWG minimum) for signal lines, keeping runs under 12 feet to minimize interference. Test all connections with a multimeter before first use–open circuits under load can arc and weld components into failure.
Secure all exposed conductors with heat-shrink tubing rated for 125°C. Bundle cables in 1-inch loom at transition points and strain-relieve through chases using Holex grommets. Label each junction with engine-specific identifiers; maintenance becomes exponentially faster with organized tagging.

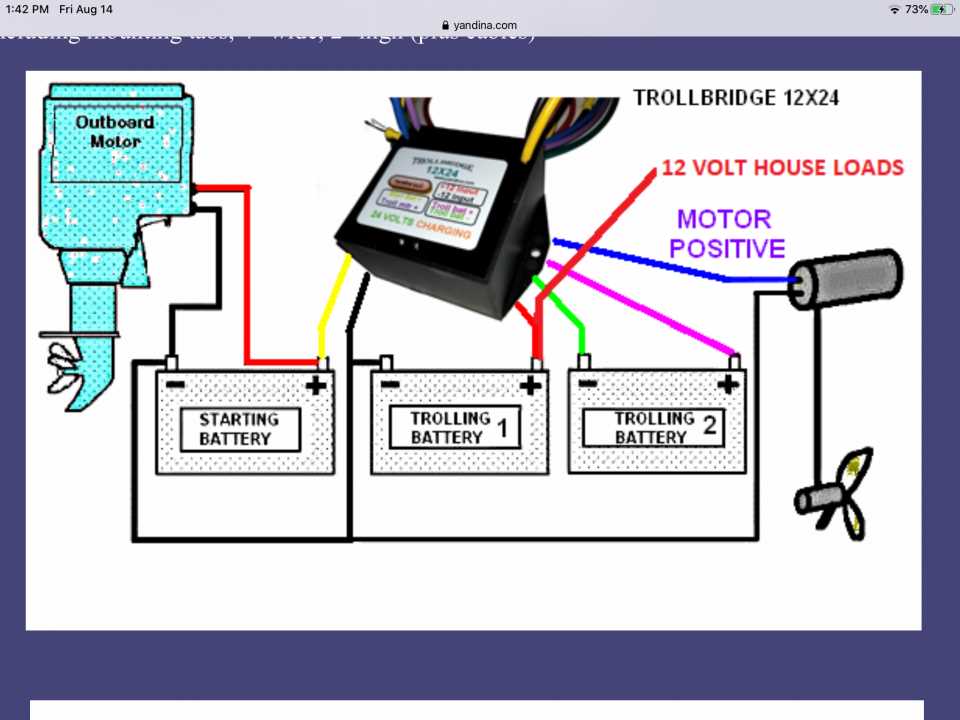

Connecting Your 24V Electric Propulsion System: Key Steps
Begin by securing two deep-cycle marine batteries rated for 12V each, ensuring both share identical amp-hour capacities to prevent imbalanced discharge. Link the positive terminal of the first battery to the negative terminal of the second using a 4-gauge copper cable no longer than 18 inches–excess length introduces voltage drop. Connect the propulsion unit’s red lead to the second battery’s positive terminal and the black lead to the first battery’s negative terminal, confirming all connections are crimp-free and soldered for corrosion resistance.
Install a 50-amp circuit breaker within 7 inches of the battery bank; this acts as both a safety cutoff and overcurrent protector. Route power cables through a waterproof conduit, avoiding sharp edges or moving parts that could abrade insulation. For systems exceeding 60 lbs of thrust, fuse the auxiliary circuit at 10 amps to safeguard onboard electronics–use tinned marine-grade wire (minimum 12 AWG) for all secondary connections.
Avoid daisy-chaining switches; instead, wire a dedicated 24V rocker switch rated for 30 amps directly between the battery bank and propulsion unit. Test voltage at the switch with a multimeter before finalizing connections–readings should stabilize at 24.8V to 25.4V under load. If readings dip below 24V, inspect cables for undersized gauges or loose terminals, which cause resistance. Replace any nickel-plated connectors with anode-grade zinc or copper to prevent galvanic corrosion in saltwater.
Label all cables with heat-shrink tubing marked “BATT1 POS,” “BATT2 NEG,” and “PROPULSION FEED” for troubleshooting. Store spare fuses (50A main, 10A aux) in a waterproof case, along with dielectric grease for terminal maintenance. Recheck connections after 10 hours of operation–initial wear-in may loosen fasteners requiring retightening to manufacturer-specified torque (typically 10-12 ft-lbs for battery terminals).
Essential Elements for a 24V Electric Propulsion System
Begin with a marine-grade deep-cycle power source–opt for two 12V batteries in series with a minimum 100Ah capacity each. AGM or lithium models (e.g., Battle Born, Optima BlueTop) resist vibration and corrosion better than flooded alternatives, critical for saltwater environments. Ensure terminal connectors are tinned copper and coated with dielectric grease to prevent oxidation, which can reduce current flow by up to 30% over six months.
Circuit protection is non-negotiable: Install a 50-ampere circuit breaker (e.g., Blue Sea Systems 5025) within 7 inches of the battery bank to comply with ABYC E-11 standards. Use 4 AWG or thicker tinned copper cable for all high-current paths–undersized conductors generate heat and voltage drop, forcing the system to draw more amperage, reducing runtime by as much as 15%. For switches, select a waterproof rocker or push-button model rated for 25% above expected load; moisture ingress in cheaper components causes intermittent failures.
Grounding and termination
Route the negative return path directly to the battery bank’s negative terminal, avoiding shared chassis grounds common in automotive setups–galvanic corrosion can develop within weeks. Crimp connectors with heat-shrink tubing or solder sleeves; twisted or taped joints fail under mechanical stress. For lithium installations, integrate a battery management system (BMS) that balances cells and cuts power if voltage dips below 20V, preventing irreversible damage. Test continuity with a multimeter before submersion; a 0.2-ohm drop across connections indicates impending failure.
Step-by-Step Guide to Connecting Two 12V Batteries in Series
Use a 4 AWG or thicker cable for inter-battery connections to minimize voltage drop. Gauges thinner than this will waste energy as heat. Cut cables precisely to the required length–excess length increases resistance. Strip 10mm of insulation from each end and crimp ring terminals rated for at least 50A.
Place both power sources on a non-conductive surface, such as a wooden workbench or rubber mat. Ensure they are positioned so the negative terminal of the first battery aligns with the positive terminal of the second. Misalignment will prevent proper polarity and may damage components.
Attach the first cable to the positive post of the primary battery and secure it with a wrench torqued to 10 Nm. Do not overtighten, as this can strip threads or crack the terminal casing. Connect the other end of this cable to the negative post of the secondary battery in the same manner.
| Cable Gauge (AWG) | Max Continuous Current (A) | Voltage Drop (mV/m at 24V) |
|---|---|---|
| 4 | 50 | 3.2 |
| 2 | 90 | 2.0 |
| 1/0 | 150 | 1.2 |
Verify the total output by measuring across the unconnected terminals with a multimeter. A correct setup will read between 23.8V and 25.4V, depending on the charge state. If the reading is below 22V, recheck connections for loose terminals or reversed polarity.
Insulate all exposed terminals with adhesive-lined heat shrink tubing or non-conductive grease. This prevents accidental short circuits if tools or debris bridge the connections. Avoid electrical tape–it degrades under vibration and UV exposure.
Mount the batteries in a ventilated enclosure to dissipate hydrogen gas released during charging. Use stainless steel bolts and nylon washers to secure them to the base. Position the assembly at least 30cm from sensitive electronics to avoid electromagnetic interference.
Connect the output terminals to the load using the same cable gauge as the inter-battery links. For systems drawing over 100A, upgrade to 1/0 AWG to prevent overheating. Route cables away from sharp edges or moving parts to avoid chafing.
Proper Conductor Size and Overcurrent Protection for Dual-Battery Setups
For a 24V electric propulsion system drawing 50-60A under normal load, use 6 AWG copper cables for runs up to 10 feet. Increase to 4 AWG for distances between 10-20 feet, accounting for voltage drop during peak demand. Marine-grade, tinned conductors resist corrosion better than standard automotive wire, reducing long-term resistance buildup in damp environments.
Fuse selection requires precise matching to conductor capacity rather than system amperage alone. A 100A ANL fuse suits 6 AWG cables, while 4 AWG pairs with a 150A fuse. Install protection within 7 inches of the positive battery terminal to shield the entire circuit. Avoid Class T fuses for continuous-duty loads–their 20,000A interrupt rating is excessive and unnecessary for propulsion applications.
- 2 AWG: 200A fuse (supports 25+ ft runs or 80A+ loads)
- 4 AWG: 150A fuse (10-20 ft runs, 60-80A)
- 6 AWG: 100A fuse (up to 10 ft, 50-60A)
- 8 AWG: 50A fuse (control circuits only)
Voltage drop calculations must prioritize the weakest link. A 5% drop at 24V equals 1.2V–acceptable for short runs but problematic over distance. Use this formula to verify:
Vdrop = (2 × L × I × R) / 1000
Where L = length (feet), I = current (amps), R = resistance (Ω/1000ft). For 6 AWG copper (0.4 Ω/1000ft), a 15-foot run at 60A yields 0.72V drop–well within tolerance.
Termination quality directly impacts reliability. Crimp connectors must use heat-shrink tubing with adhesive lining to prevent moisture ingress. Lugs should match cable size exactly–oversized terminals increase contact resistance. Torque specifications for battery connections (typically 70-90 in-lbs) must be followed precisely; undertightened connections overheat, while overtightened lugs weaken the terminal. Regular infrared inspections (every 50 hours of operation) catch developing hotspots before failures occur.
Diagnosing Frequent Electrical Problems in 24V Propulsion Systems
Verify battery terminal connections first if the unit fails to power on. Corrosion on clamps, even minor, increases resistance enough to disrupt current flow. Clean terminals with a wire brush and apply dielectric grease to prevent oxidation. Check for loose or broken wires near the battery posts–these often appear secure but fracture internally under vibration.
Test voltage at the control head if the system powers on but responds sluggishly. A reading below 22V at the foot pedal or hand remote indicates a weak battery bank or excessive voltage drop in the circuit. Measure voltage at both batteries independently; a difference greater than 0.5V suggests one battery is failing. Replace the weaker unit rather than both to avoid masking deeper issues.
Intermittent Power Loss
Inspect inline fuses and circuit breakers if the system cuts out unexpectedly. Many installations use 50A or 60A fuses–verify these are intact and matched to the system’s amperage draw. A breaker tripping repeatedly signals a short; trace the entire cable run from batteries to the drive unit, focusing on areas exposed to abrasion or sharp edges. Replace damaged cable sections with marine-grade tinned copper wire, ensuring the gauge matches or exceeds the original.
Check the speed switch contacts if only certain speed settings fail. Corrosion or debris buildup inside the switch disrupts current flow to the coils. Disassemble and clean contacts with contact cleaner–never use sandpaper, as it leaves conductive residue. Ensure the switch plunger moves freely; binding often mimics electrical failure but stems from mechanical wear.
Overheating Components
Measure amperage draw during operation if the unit overheats. A reading exceeding the manufacturer’s specification (typically 40–50A for a 24V system at full thrust) points to a binding propeller, obstructed housing, or faulty solenoid. Remove debris from the propeller shaft and test again in open water. If current remains high, the solenoid or drive coils may be shorted–replace these components rather than attempting repairs.
Examine battery charging habits if overheating persists. Fully discharging deep-cycle batteries before recharging degrades their lifespan and increases internal resistance. Recharge at 50% capacity whenever possible, and equalize batteries every 30–50 cycles to prevent sulfation. Overheating during charging signals a faulty charger–test output voltage and replace if readings fluctuate or exceed 30V.
